L-Flex MAX

Specifications

• Nominal Voltage 51.2V
• Capacity 9.2kWh
• Nominal Ah 180Ah
• Cell LiFePO4
• Battery Life Up to 5000 Cycles
• Dimensions 26.18 in / 665 mm (L)
  15.39 in / 391 mm (W)
  9.61 in / 244 mm (H)
• Weight 182.98 Ibs / 83 kg
• with

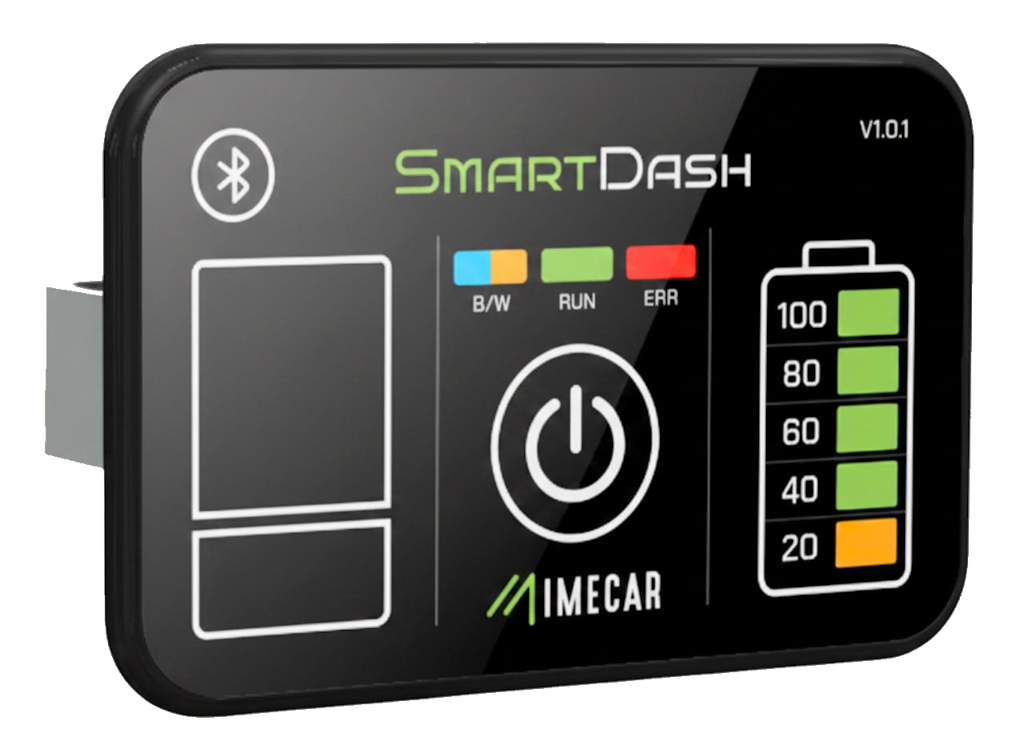

  The Imecar SmartDash is an innovative dashboard-mounted monitor designed to streamline battery management for golf carts. Featuring an intuitive interface, the device includes a convenient Power On/Off button and LED indicators for Bluetooth and Wi-Fi connectivity, battery status, error alerts, and the State of Charge. Connected directly to the battery via a cable, it eliminates the need to access the battery compartment for manual operation. Equipped with Bluetooth and Wi-Fi modules, the SmartDash pairs effortlessly with a smartphone, providing users with detailed battery diagnostics, performance data, and seamless Over-the-Air (OTA) software updates through the Imecar mobile app. Compact, user-friendly, and technologically advanced, the Imecar SmartDash enhances convenience, safety, and efficiency for golf cart owners and operators.
